BT I - Plate Broadband Accelerator (Alternative)

PRODUCT CODE: NTE5IDC



This product has been discontinued by the manufacturer, where available alternative products can be found below. This page is for information & reference only!

Replaced by NTE5C MK2.




BT NTE5A Master Socket (+ FREE IDC tool), manufactured by Pressac UK who supply BT Openreach.



You may have heard of the BT iPlate (nterstitial Plate or BT Broadband Accelerator) and what it promises to do for your broad band connection! Here is what BT have to say on the product :-

"We've seen huge increases in speed," claimed Ashley Pickering from BT Wholesale's broadband access solutions team. On average, it makes one and a half megs of difference."

What BT Total Broadband Says.....

"Accelerator pushing speeds by an additional 1.5Mb, depending on line and location."

BT Broadband Accelerator is BT's new name for the iPlate.


The instructions that come with BT iPlates state it is not suitable for use with the latest version of the NTE5's with the BT Openreach branding, the reason? That NTE5 already has the extra filter built in.

So if you are willing to swap the front plate off your existing NTE5 for the latest spec (which is what we sell) in essence you will have an I Plate, the only difference is you would have to re-install any customer side (extensions running off the NTE5) wiring (3 wires if done to specification).


This is the extra filter on the latest NTE5's :-

NTE5 Bell Wire Filter Moulding

NTE5 Bell Wire Filter fitted to PCB



Note that the BT Openreach branded ADSL filters for the NTE5 socket we sell also do the same job with the added benefit of a centralised ADSL filtering (you don't need plug in filters!).





Feedback What our customers say about the solution.....


"Excellent Service, next day delivery and the NTE5 box that features the filter on the bell wire circuit actually worked and improved my ADSL performance immediately as the web site said it would!" Mr John Chambers

"Very quick delivery and an all round superb service, the socket has boosted my broadband speed as promised." Mr Peter Salih

"One of the best things I have purchased increased my broadband by more than 3Mb I am now getting 6.5Mb before 2.5 to 3Mb. Thank you" Mr Keith Spencer

"Excellent service, excellent product. Added 1Mb to my 0.4Mb broadband speed - thank you!" Andrew

"NTE5(A)Socket received swiftly, and internet speed increased by 30% amazing! Thank you very much" Harry

This product has been discontinued by the manufacturer, where available alternative products can be found below. This page is for information & reference only!

Replaced by NTE5C MK2.

£7.67(£9.20 inc VAT)
DISCONTINUED

Replaced by NTE5C MK2.

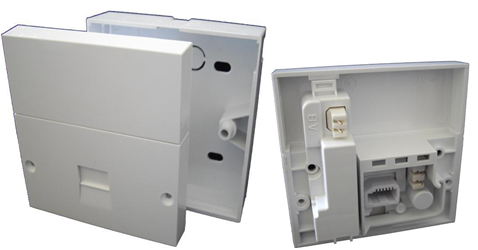

BT Openreach Branded NTE5C MK2 Master Socket

PRODUCT CODE: NTE5C

BT Openreach Branded NTE5C MK2 Master Socket

Latest NTE5C MK2 master socket with BT Openreach branding printed on the top left corner. Facilitates easy testing of the BT line by removal of the front lower faceplate to reveal what is known as the test socket. Cam lock connectors on the rear connect to the incoming phone line, cam lock connectors on the front allow the end user to easily connect internal telephone extension wiring. The NTE5C MK2 is the latest type of socket that BT Openreach currently install, supplied as three pieces (22mm rear back box, rear plate with test socket and front lower plate). Note, the socket can be flush mounted to a single gang back box. Dimensions (L) 85mm x (W) 85mm x (H) 35.5mm. No tools are required for the wiring (tool-less IDC connectors).

NTE5C extension connectors

Cam lock connectors for telephone extensions - 2,3 & 5 (front)

NTE5C telephone line connections

Cam lock connectors for incoming telephone line - A & B (rear)

NTE5C lower front plate

Lower front plate

Key Features

  • The front of the NTE5C MK2 includes subtle curves to improve the overall aesthetics but external dimensions remain similar to the previous NTE5A.
  • Now includes labelling on top plane – “Master Socket 5C”.
  • Access the test socket and home wiring terminations without using a screwdriver.
  • The front plate has no connected wires making its removal and replacement wire-free.
  • Tool-less Insulation-Displacement Connector (IDC) wire connection for both network and home wiring.
  • Home wiring termination is now on a secure connector on the face of the back plate.
  • The internal design uses components that are resistant to moisture ingress.
New Product £7.67(£9.20 inc VAT)
In Stock
