XTE 2005 Clone NTE5 ADSL Faceplate

PRODUCT CODE: NTE5BADSL

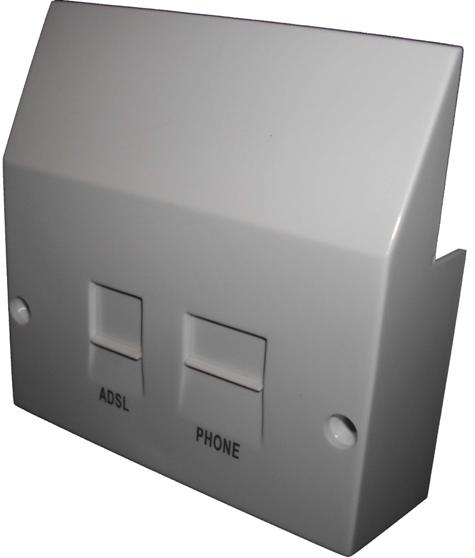

The XTE 2005 clone faceplate replaces the lower half of a BT NTE5 master socket.



ROHS Compliant ADSL2 Compatible



Same benefits as NTE5 bell wire filter! This faceplate gives you the same benefits as the NTE5/BT Broadband Accelerator bell wire filter with the ADDITION of ADSL filtering!

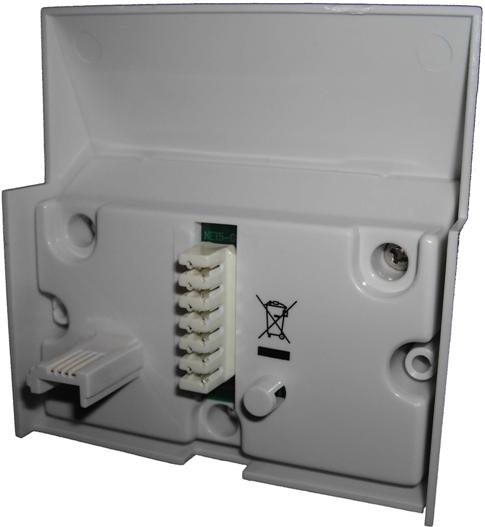

The XTE 2005 clone (of the ADSL Nation/Tandy version) ADSL faceplate installs on to a BT NTE5 type master socket, supplied with cable tie & screws. The faceplate provides an ADSL modem/router outlet and a standard BT filtered telephone outlet*.Your router or modem can now be plugged directly into the master socket which often offers a better connection as it is no longer reliant on plug in filters or unreliable poor quality extension wiring. IDC connectors on the rear provide FILTERED AND UNFILTERED (ADSL) extensions, ie, you only need this faceplate and not a microfilter at each extension! IDC tool required ONLY if fitting extension wiring.

*The faceplate features a standard BT socket for telephone connection and an RJ45 socket for ADSL connection-the RJ45 socket will accept both RJ45 AND RJ11 (as featured on most ADSL modems/routers) plugs.

Same benefits as NTE5 bell wire filter! Beware of versions of this faceplate that do not have the same filter design! Our version is electronically identical to the Tandy/ADSL Nation XTE-2005, others LOOK the same but differ considerably! Click on the images for a larger view.

Our equivalent:-

XTE-2005 Clone PCB



Versions available elsewhere:-

XTE-2005 Copy PCB





This product has been discontinued by the manufacturer, where available alternative products can be found below. This page is for information & reference only!

DISCONTINUED-Replaced by VTE2015.

£6.00(£7.20 inc VAT)
DISCONTINUED

DISCONTINUED-Replaced by VTE2015.

VTE 2015 vDSL/ADSL Faceplate

PRODUCT CODE: VTE2015

VTE-2015 Faceplate VTE-2015 Rear

Same benefits as NTE5 bell wire filter! This faceplate provides the same benefits as the NTE5/BT Broadband Accelerator bell wire filter with the ADDITION of vDSL/ADSL filtering.

Latest VDSL faceplate for NTE5 type master sockets (replaces earlier XTE-2005 version). Unlike the BT version the VTE-2015 replaces the lower front half of the NTE5 socket, useful if you are replacing an old type ADSL faceplate & no longer have the original NTE5 lower front plate. Centralised vDSL filtering is then provided negating the need for plug in microfilters with an RJ45/RJ11 socket providing the connection for a modem/router. Alternatively, provision is made for a hard wired connection to the modem and filtered telephone extensions via the IDC connector block on the rear. This faceplate is backwards compatible with all ADSL services & features differential and common mode filtering performances to 30Mhz.

Key Features

  • Line: BS6312 approved integrated 431A plug.
  • CCU: BS6312 approved 4 way 401A socket (filtered).
  • VDSL Modem: Direct coupled RJ45 socket (RJ11 compatible) Direct coupled IDC connector.
  • Filters all connected voice equipment so negating the need for microfilters.
  • Moulded from V0 rated material colour matched to BT 1P white.
  • Supplied with mounting screws.
  • Differential and common mode filtering performances specified to 30Mhz.
£10.17(£12.20 inc VAT)
In Stock
