RJ11 Snap In Module
PRODUCT CODE: RJ11MOD
RJ11 module which is ideal for ADSL extensions. 6 way so also known as RJ12,cut out size is 25x50mm (standard euro size module)

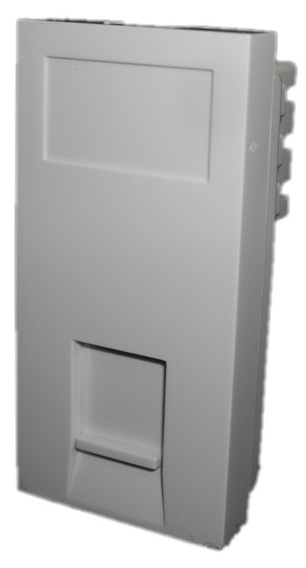

The RJ11 Eurostyle Module is designed for installation into the range of Eurostyle faceplates. With an industry leading low profile, it has been independently tested to all relevant FCC 68 specifications.
The incoming terminating cable can be ‘tied’ to the module offering strain relief. As standard, the module is provided with a recessed area above the shuttered aperture for port identification using an industry standard labeling system or the stick on label provided. With an industry leading 19mm profile, the RJ11 Eurostyle module is particularly suited to trunking environments where space for internal cable management is at a premium. These modules can be used in any combination with our other euro modules when using the euro double faceplate, eg, RJ11 & BT socket on one faceplate.
• 19mm Low profile

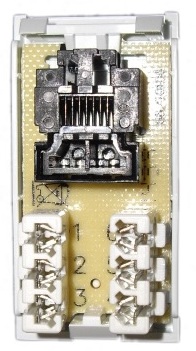

• RJ11 pins 1 to 6 connected
• LSA compatible IDC connectors
• Shuttered access to protect from dust ingress
• Manufactured from V0 flame retardant WHITE PVC
