BT to RJ45 Patch Kit-Port Sharing Version
PRODUCT CODE: RJ45V1PD
Easily patch a BT telephone line over RJ45 LAN cabling (CAT5/CAT5e/CAT6 network cabling). Designed for home & office networks where the user wishes to share or move a telephone line without the need for expensive telephone exchanges. Custom manufactured BT to RJ45 plug patch leads connect a standard BT telephone line to the RJ45 sockets (CAT5e/CAT6) on your patch panel; up to a maximum of 4 extensions for each BT line. Various versions are available. Compatible with telephones, FAX & PDQ machines etc & does not affect caller ID.
Like the idea of patching a BT line over a CAT5e or CAT6 cable but don't have any spare ports?! That is no longer a problem! Our port sharing version allows you to share one CAT5e or CAT6 outlet; run a data device AND a telephone off one port! Our unique port doublers are specially wired to use the correct pairs for voice & data use (10/100 speeds).

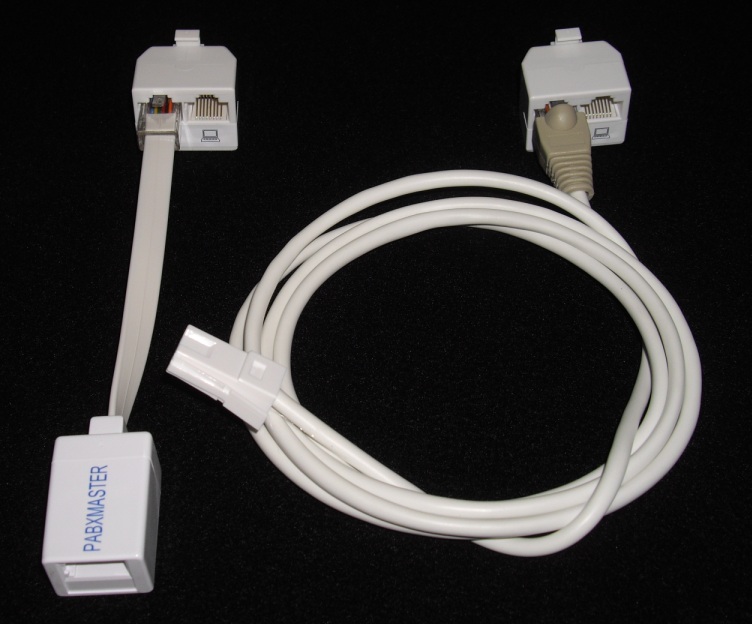

Contains 1 BT to RJ45 Patch Lead (1.5m length)
2 RJ45 Port Doublers
1 RJ45 to BT Converter
Got ADSL? The above kit can also be used with our custom RJ45 ADSL filter-product code RJ45ADSLMF. This will allow you to patch 10/100 DATA, Voice and ADSL over ONE cable!
BT to RJ45 Patch Kit-Port Sharing Fly Lead Kit
PRODUCT CODE: RJ45VFLK
Some patch panels and wall outlets are high density, where this is the case the port doubler may obscure an adjacent port. To combat this problem you also require the port doubler fly-lead kit.
Contains 2 CAT5e Flyleads
2 RJ45 to RJ45 Couplers
