A premium quality ADSL faceplate filter as supplied by BT/Openreach

BT NTE-2005 ADSL Faceplate for NTE5 Socket NTE2005 ADSL Faceplate NTE2005 ADSL Faceplate for NTE5 socket

Genuine BT Openreach NTE2005 ADSL Faceplate ADSL2+Version

NTE2005 faceplate-click for large picture Click the picture for an ENLARGED view! User Guide Download User Guide Pressac NTE2005 Data Sheet Manufacturer Data Sheet

Same benefits as NTE5 bell wire filter! This faceplate provides the same benefits as the NTE5/BT Broadband Accelerator bell wire filter with the ADDITION of ADSL filtering.

The NTE-2005 replaces the lower half of a BT NTE5 type master socket, manufactured by Pressac UK who supply BT.

The NTE-2005 faceplate is the type of ADSL faceplate that BT Openreach engineers fit on a full ADSL installation (referred to as "Type 4 SSFP", replaces ADSL V1.0 version). The NTE-2005 fits on to any BT NTE5 type master socket (also available-see below), supplied with user instructions, cable tie & screws. It allows the router or modem to be plugged directly into the master socket which often results in a better connection as it is no longer reliant on plug in filters or unreliable poor quality extension wiring. The faceplate provides an ADSL modem/router outlet and a standard BT filtered telephone outlet*. IDC connectors on the rear allow the provision of FILTERED and UNFILTERED extensions, ie, you only need this faceplate and not a microfilter at each extension. IDC tool required ONLY if fitting extension wiring. Latest ADSL 2+ version which is a direct replacement for the ADSL V1.0 version. When fitted to the NTE5 master socket BT refer to this setup as "Type 4: Service Specific Faceplate (SSFP)".

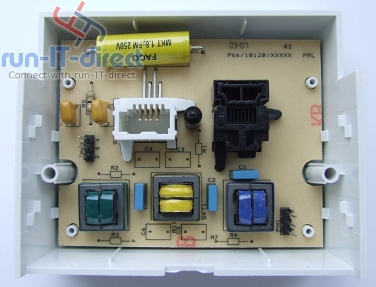

NTE2000 Vs NTE2005 Note this version is the 6 way IDC version which allows both filtered and unfiltered extensions, we also supply the version with 3 way IDC block for connecting a modem/router via the front socket ONLY, please see below.

*The faceplate features a standard BT socket for telephone connection and an RJ45 socket for ADSL connection-the RJ45 socket will accept both RJ45 AND RJ11 (as featured on most ADSL modems/routers) plugs.

Key Features
  • Line: BS6312 approved integrated 431A plug.
  • Telephone : Connection via BS6312 4 way BT socket.
  • Modem : Direct coupled RJ45 (RJ11 compatible) socket.
  • Approved by BT Openreach.
  • Extension / ADSL wiring : 6 way IDC connector
  • Filters all connected voice equipment so negating the need for microfilters.
  • Moulded from V0 rated material colour matched to BT 1P white.
  • Tested by BT to SIN 346 Issue 2.2
  • Compatible with Calling Line Identification working.
  • CE Marked BS EN 55022.
