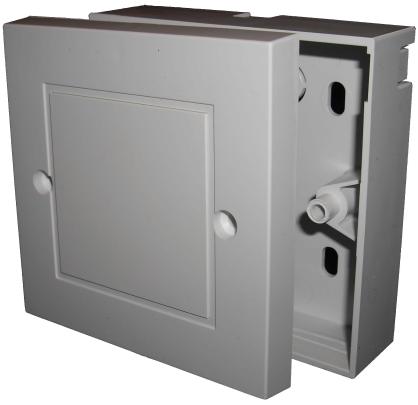

ADSL Filter-Hard Wired

This faceplate provides the same benefits as the NTE5/BT Broadband Accelerator bell wire filter with the ADDITION of VDSL/ADSL filtering.

Latest VDSL faceplate for NTE5A type master sockets (replaces earlier XTE-2005 version & VTE2015). Unlike the BT version the VTE-2015B replaces the lower front half of the NTE5 socket, useful if you are replacing an old type ADSL faceplate & no longer have the original NTE5 lower front plate. Centralised VDSL/ADSL filtering is then provided negating the need for plug in microfilters with an RJ45/RJ11 socket providing the connection for a modem/router. Alternatively, provision is made for a hard wired connection to the modem and filtered telephone extensions via the IDC connector block on the rear. This faceplate is backwards compatible with all ADSL services & features differential and common mode filtering performances to 30Mhz.

Key Features

• Line: BS6312 approved integrated 431A plug.
• CCU: BS6312 approved 4 way 401A socket (filtered).
• VDSL Modem: Direct coupled RJ45 socket (RJ11 compatible) Direct coupled IDC connector.
• Filters all connected voice equipment so negating the need for microfilters.
• Moulded from V0 rated material colour matched to BT 1P white.
• Supplied with self tapping & machine type mounting screws (compatible with ALL NTE5 socket variants).
• Differential and common mode filtering performances specified to 30Mhz.
• ADSL filter performance compliant with SIN346
• VDSL2 filter performance compliant with SIN498

Note, NOT compatible with NTE5C master sockets! Use MK4 VDSL or G.fast for NTE5C.
